Engine Gyroscopic Effect
Turning Tendencies Many advances in Aerodynamics have made airplanes easier to fly but there are still some tendencies for the airplane to move in an unintended direction. Knowledge about gyroscope movement is important for applications in different fields of physics eg.
Do Gyroscopic Forces From Rotating Engines Significantly Affect Yaw Or Pitch Aviation Stack Exchange
Which produces gyroscopic effect is a rotating gyroscope.
Engine gyroscopic effect. Rotary Engine Gyroscopic Effect - Sopwith Camel Real Time Recording - YouTube. Knowledge of why these turning tendencies exist and how to adjust for. Let engine or propeller rotates in the clockwise direction when seen from the rear or tail end and the aeroplane takes a turn to the left Let ωAngular velocity of the engine in rads m Mass of the engine and the propeller in kg.
If excessive this can cause the blades to rub into the case causing loss of performance. Speedway bikes are a classic example. 153K view I understand that if a disk is.
If the gyroscope is not spinning it acquires angular momentum in the direction of the torque L ΔL L Δ L and it rotates about a horizontal axis falling over just as we would expect. Same direction rotation engines will step the rear wheel out easier than the opposite rotating engines will. The gyroscope force affects all propeller-driven aircraft whenever the propeller axis is forced to tilt.
Gyroscopic effects of spinning turbojet engines on modern single-engine fighters are barely noticeable when aero-surfaces are used at higher speeds with their maximum mechanical advantage. Airliners dont usually pitch or yaw at high rates so any precession torque will be relatively low but it is. However gyroscopic effects do become noticeable in several areas of a propellor driven aircrafts flight envelope.
An increase in propeller weight RPM diameter and the rate of pitch roll and yaw movements will cause greater gyroscopic effect which can be quite noticeable during in-flight maneuvers. On a trials bike they have inordinately largeheavy flywheels that ca be used a couple ways. The couple-stress based governing equations for the torsional motion φ x t and flexural motions v x t w x t have been rigorously derived and presented by Eqs.
Gyroscopic forces are a factor on propellor driven aircraft but generally not noticeable on a stable God Fearing aircraft in cruise flight. One of the best known areas are in dramatic changes in pitch attitude at low speeds. Counter rotating shafts in engines like the RR Trent are more for aerodynamic reasons than to reduce precession torque.
Thats why the Pegasus engine has counter-rotating shafts. Larmor precession in atomism and astronomy lunisolar precession of Earth in technology eg. 1 is the gyro effect 2 is as a stored energy bank.
For any 4-wheeled vehicle the gyroscopic forces from the rotating wheels will cause the outside wheels to be loaded up more than the inner wheels. A gyrocompass is an application of the gyroscopic effect. The torsional vibration in rotors is induced by the dynamic gyroscopic effect arisen from the lateral deformation.

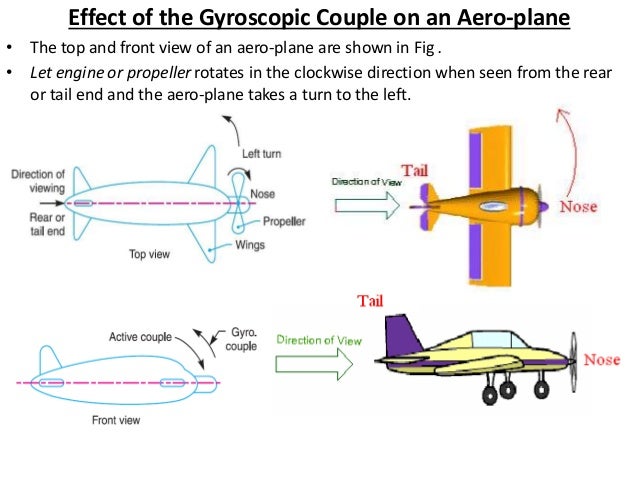

Effect of the Gyroscopic Couple on an Aeroplane The top and front view of an aeroplane are shown in Fig a. Rotary Engine Gyroscopic Effect - Sopwith Camel Real Time Recording Watch later. Because of effect of the law of angular momentum conservation a body rotating around its own axis tends to maintain its own direction.
That means that it could freely shifts over a plane perpendicular to the rotation axis just like a motorcycles wheel. The Gyroscopic Effect is a very important physical effect in a motorcycle. For a VSTOL aircraft like the Harrier gyroscopic precession is important as it adversely affects hovering stability.
Gyroscopic effect in transportation 1-20 in. Well jet engines do have gyroscopic effects. When the input motion with 35 Hz is added the rotor spins in thousands rpm with the precession motion which.
Gyroscopic effect comes into action when axis of rotation of a rotating body propeller wheel etc is turned round in a plane perpendicular to plane of rotation of that bodyIt produces a gyroscopic reactive couple which produces a variety of effects on motion of cars motorbikes planes and ships. The effect of the reactive gyroscopic couple will be to dip the nose and raise the tail of the aeroplane. They are much more noticeable at slower speeds like takeof.
2When the engine or propeller rotates in anticlockwise direction when viewed from the rear or tail end and the aeroplane takes a left turn then the effect of reactive gyroscopic couple will be to dip the nose and raise the tail of the aeroplane. The gyroscope precesses around a vertical axis since the torque is always horizontal and perpendicular to L. As a extreme example of my understanding of engine gyroscopic effectI would like to cite the rotary engine of the plane Sopwith Camel which produced so much gyroscopic effect that the plane went up on left turns and down on right turnsButthis was because there were 8 cylinders revolving around a stationary crankshaft.
Its part of how they can execute huge hops from a stand still - if youve got the skills that is. It is a major concern in the design of the turbomachinery. And in trials its a handy effect that the riders use to help with balance.
Effect of the Gyroscopic Couple on an Aeroplane - When the aeroplane takes a right turn under similar conditions. Amusement gyro rides feature a huge gyroscope-like structure which spins in all directions giving the riders a feeling of weightlessness. It uses the effect of gyroscopic precession and is used for navigation on.
When the plane pitchesyaws the resulting gyroscopic moment causes the compressor and turbine blades to move closer to the case. The gyroscopic exercise tool which utilizes the gyroscopic effect of the high speed rotating body to train the hand muscle is considered.
Effect Of Reactive Gyroscopic Couple On An Aeroplane Whenit Takes Left Turn And The Rotation Of Propeller Is In Clockwise
Left Turning Tendencies Explained Why Your Plane Pulls Left During Takeoff Boldmethod
Do Aeroplanes Have To Balance Torque Like Helicopters Aviation Stack Exchange
The Gyroscopic Effect Due To Rotating Parts Of A Turbo Jet Engine Of An Air Craft On A Curved Course Depend On
Gyroscopic Effects On An Aeroplane Youtube
What Is The Gyroscopic Effect When An Aeroplane Takes A Right Turn And A Left Turn Quora
Do Gyroscopic Forces From Rotating Engines Significantly Affect Yaw Or Pitch Aviation Stack Exchange
How Strong Is The Gyroscopic Effect On Aircraft Quora
Gyroscopic Precession The House Of Rapp
Ppt Topic Name Powerpoint Presentation Free Download Id 644887
Stability Of A Vehicle Taking A Turn Automobile
What Is The Gyroscopic Action On Propeller Aircraft Quora

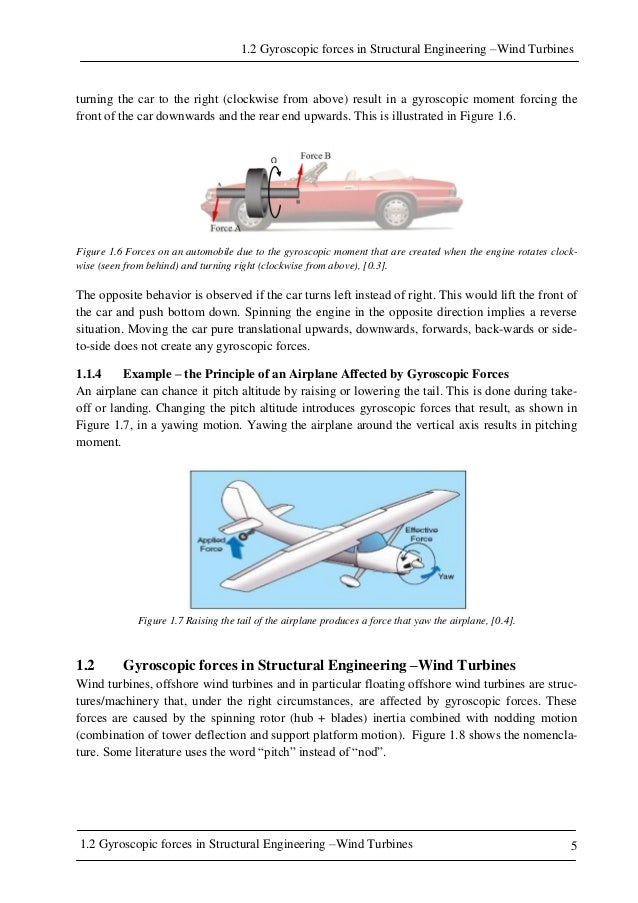

Final Thesis Numerical Simulation Of Gyroscopic Effects In Ansys 11
